Zebra ZD410 Label Printer

Print custom barcode labels for your products

Often times, your store will order accessories that do not come with UPCs/barcodes. In order to maintain inventory efficiency, your store will want to label those products on your own.

BLAZE POS supports the Zebra ZD410 label printer, specifically with the 2" by 1" labels.

Calibrating your printer

It's likely that your initial barcode label images are not exactly lined up with the paper. If that is the case for you, follow these steps:

1. Insert your label rolls.

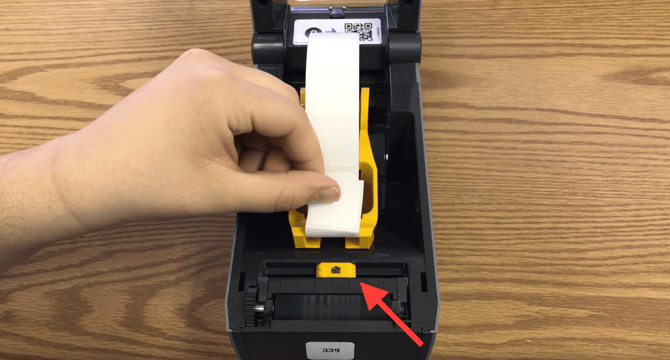

2. Open the lid and adjust the slider to align with the center notch



image - 2023-08-10T125046.384

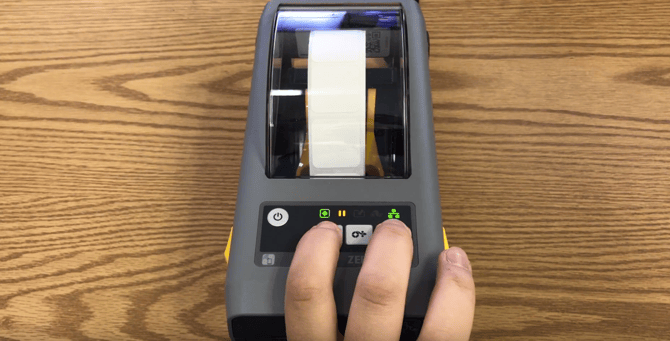

3. Hold down the left and right buttons down at the same time to calibrate



image - 2023-08-10T125126.714



4. Pressing the middle button should print out an empty label.

5. All done!

Setup guides

Printer calibration video:
https://www.youtube.com/watch?v=-V8UfRF3e2o

If you are on a Mac, please go through these steps first:
https://supportcommunity.zebra.com/s/article/Install-CUPS-driver-for-Zebra-Printer-in-Mac-OS?language=en_US

The complete manual can be found here:
https://www.zebra.com/content/dam/zebra/manuals/printers/desktop/zd410d/zd410d-ug-en.pdf

Additional support content can be found here:
https://www.zebra.com/us/en/support-downloads/printers/desktop/zd410.html

For a helpful guide on calibrating labels:
https://www.youtube.com/watch?v=-V8UfRF3e2o
