Hardware Overview

Review the hardware that is compatible with BLAZE POS.

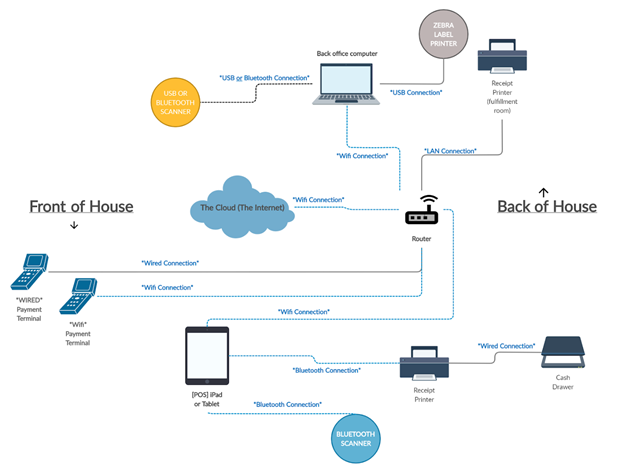

This article provides an overview of the types of hardware devices that will work with BLAZE POS. Additionally, a hardware diagram is provided to visualize how hardware can be connected.

Tablet Hardware is used to operate the BLAZE POS app.

iPad- 10.2” screens

Generation 7 and 8 and up.
Sorry, no minis.

Android Tablet- over 10" screens (10.4 preferred)

Android OS 11 and up.
- Galaxy Tab S6 Lite 10.4" (SM-P610NZBAXAC)
- Galaxy Tab A7 10.4" (SM-T500NZAAXAC)

Tablet Stand

Used to cradle your iPad or Android Device
- Flexipole Universal tablet stand

Payment Terminal

Merrco

PAX D210/S80 (legacy hardware, no longer shipped)
PAX A920 (flagship hardware)
PAX S920 (budget hardware, works the same as the A920)

Moneris

ICT250 (LAN- legacy hardware, no longer shipped)
Moneris Core payment terminals:
- Desk/5000 (LAN)
- V400c (LAN)
- Move/5000 (Wi-Fi)
- V400m (Wi-Fi)

Printers

Receipt Printers

mC-Print 3 Series Bluetooth/LAN receipt printer
- Both Bluetooth and LAN connections can be used for front-of-store operations.
- Scanners can be connected directly through the printer.
STAR Micronics TSP-100 Bluetooth/LAN/WIFI receipt printer
- For front-of-store operations, use Bluetooth printers.
- For back-of-store printing, use LAN printers.
Star Micronics TSP-650/Bluetooth receipt printer
- For front-of-store operations.
- Only works for iPads Gen 7 and above
Star Micronics 16x16 CD3 cash drawer
- Connected to the Star Micronics TSP-100 or mC-Print 3 receipt printers
Star Micronics CD3 Cash Drawer extra tray inserts
Star Micronics thermal paper rolls [x12 per case]

mC-Print 3 Series Bluetooth/LAN receipt printer

Both Bluetooth and LAN connections can be used for front-of-store operations.
Scanners can be connected directly through the printer.

STAR Micronics TSP-100 Bluetooth/LAN/WIFI receipt printer

For front-of-store operations, use Bluetooth printers.
For back-of-store printing, use LAN printers.

Star Micronics TSP-650/Bluetooth receipt printer

For front-of-store operations.
Only works for iPads Gen 7 and above

Star Micronics 16x16 CD3 cash drawer

Connected to the Star Micronics TSP-100 or mC-Print 3 receipt printers

Star Micronics CD3 Cash Drawer extra tray inserts

Star Micronics thermal paper rolls [x12 per case]

Label Printer

Zebra ZD410
- For barcoding accessories and non-cannabis items without manufacturer barcodes
- Accepts 2" x 1", 1" core label sticker roll
Zebra ZD410 label rolls [x6 per case]

Scanners

Star Micronics 2D Barcode Scanner
- BSD-FR4080 (Table-top USB) 1st Choice
- BSH-HR2081 (Handheld USB) 2nd Choice
- BSH-HR2081BT (Handheld Bluetooth) 3rd Choice
Symbol / Zebra 2D Barcode Scanner
- Symbol DS9208 (Table-top/handheld USB) 2nd Choice
- Zebra DS9308 (Table-top/handheld USB) 1st Choice
Socket Mobile Scanner
- Socket Mobile Scanner S740 (Handheld Bluetooth) 2nd Choice
- Socket Mobile DuraScan D760 Barcode Scanner (Handheld Bluetooth) 2nd Choice
- Socket Mobile Scanner Cradle/Dock 2nd Choice
POSX USB 2D barcode scanner
- For the back-of-house inventory management while attached to a PC
- Not for front-of-house POS use, except for WebPOS users or mC-Print 3 users.
- Will not work with Elos and iPads.

Star Micronics 2D Barcode Scanner

BSD-FR4080 (Table-top USB) 1st Choice
BSH-HR2081 (Handheld USB) 2nd Choice
BSH-HR2081BT (Handheld Bluetooth) 3rd Choice

Symbol / Zebra 2D Barcode Scanner

Symbol DS9208 (Table-top/handheld USB) 2nd Choice
Zebra DS9308 (Table-top/handheld USB) 1st Choice

Socket Mobile Scanner

Socket Mobile Scanner S740 (Handheld Bluetooth) 2nd Choice
Socket Mobile DuraScan D760 Barcode Scanner (Handheld Bluetooth) 2nd Choice
Socket Mobile Scanner Cradle/Dock 2nd Choice

POSX USB 2D barcode scanner

For the back-of-house inventory management while attached to a PC
Not for front-of-house POS use, except for WebPOS users or mC-Print 3 users.
Will not work with Elos and iPads.

Discontinued Hardware

Elo Paypoint Plus for iPad
